Using ReductStore as a Zenoh storage backend

ReductStore is an open source time series object store. It can persist time series data of any size and type: small JSON telemetry, camera frames, LiDAR point clouds, vibration chunks, or anything else you can encode as bytes. Starting with version 1.19, it ships a native Zenoh plugin: an instance can join a Zenoh network as a regular peer, subscribe to key expressions, persist every sample it receives, and answer get() queries on the same key space. No bridge process, no extra protocol.

The data models line up well. A Zenoh sample is published on a key (e.g. robot/arm/joint1) and carries a timestamp, a payload, and an optional attachment. On the storage side, a record is stored under an entry name and carries a timestamp, an arbitrary size payload, and a set of labels. Same structure, different taxonomy. The mapping between the two is almost one to one:

Key expressions (wildcard patterns like robot/**) are used on the ReductStore side to configure which keys the subscriber and queryable respond to.

This post walks through a small runnable example (two simulated robots, a gateway, one ReductStore instance, and a remote query client) and highlights four patterns that work well together. Everything is in github.com/reductstore/zenoh-example; docker compose up and you can follow along.

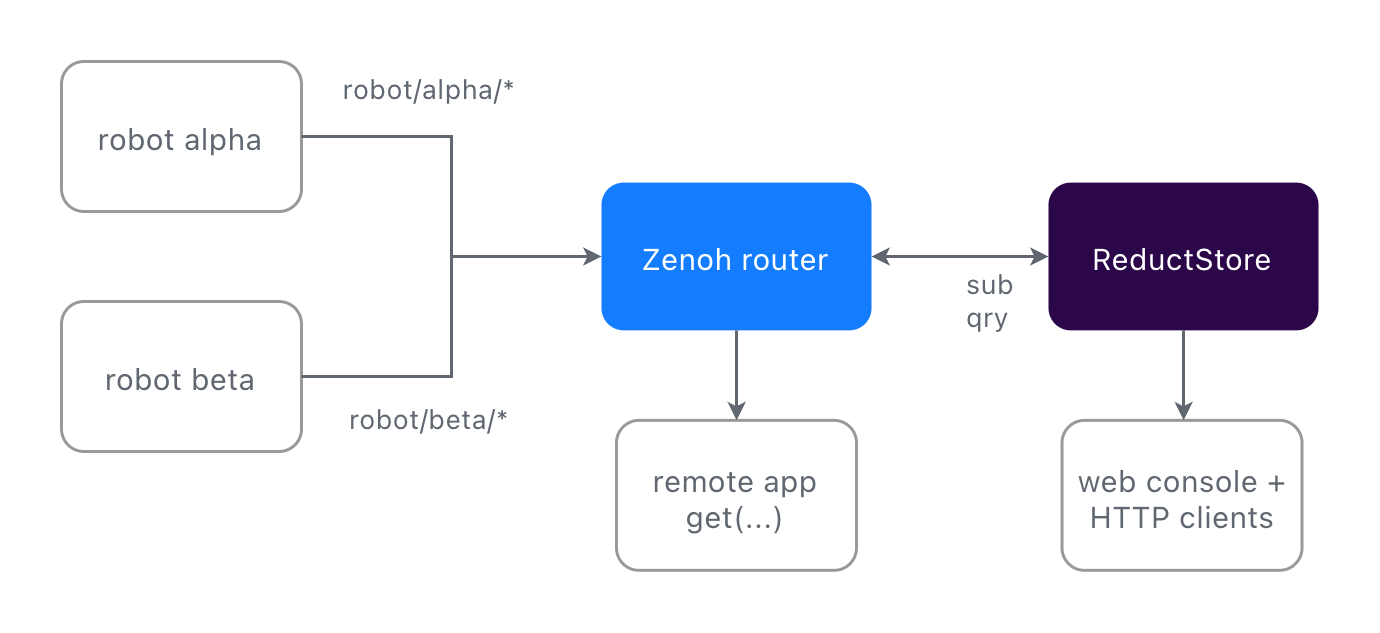

The setup

Each robot publishes to robot/<id>/camera (JPEGs at 2 Hz) and robot/<id>/telemetry (JSON at 10 Hz). ReductStore connects to the router as a Zenoh client and both subscribes and answers queries on robot/**. The whole integration is environment variables:

reductstore:
  image: reduct/store:latest  # v1.19+ has a native Zenoh API
  environment:
    RS_ZENOH_ENABLED: "true"
    RS_ZENOH_CONFIG: "mode=client;connect/endpoints=[tcp/zenoh-router:7447]"
    RS_ZENOH_BUCKET: "fleet"
    RS_ZENOH_SUB_KEYEXPRS: "robot/**"
    RS_ZENOH_QUERY_KEYEXPRS: "robot/**"
  ports:
    - "8383:8383"

Robots write the way they already do. The Zenoh attachment on a sample becomes record labels on the ReductStore side:

labels = {"robot": ROBOT_ID, "status": t["status"]}
pub.put(
    json.dumps(t).encode(),
    encoding=zenoh.Encoding.APPLICATION_JSON,
    attachment=json.dumps(labels).encode(),
)

What you get

1. Query by time range and by condition

ReductStore hooks into Zenoh’s get(). The selector carries a time window, and a JSON attachment carries a condition on labels. Both are evaluated on the storage side before any data is sent back to the client.

Time range:

selector = f"robot/alpha/telemetry?start={start_us};stop={stop_us}"
replies = session.get(
    selector,
    consolidation=zenoh.ConsolidationMode.NONE,
)

Note the ConsolidationMode.NONE. Without it, Zenoh may consolidate replies and return only one sample per key. For a time series query you want every record in the range, so consolidation must be disabled.

Conditional filter on labels:

attachment = json.dumps({"when": {"&status": {"$eq": "warn"}}}).encode()
replies = session.get(
    f"robot/alpha/camera?start={start_us};stop={stop_us}",
    attachment=attachment,
    consolidation=zenoh.ConsolidationMode.NONE,
)

“Every camera frame from the last ten minutes where status was warn” is one get(). No client side filtering. The when syntax supports comparison, logical, arithmetic, and aggregation operators. See the Conditional Query Reference for the full list.

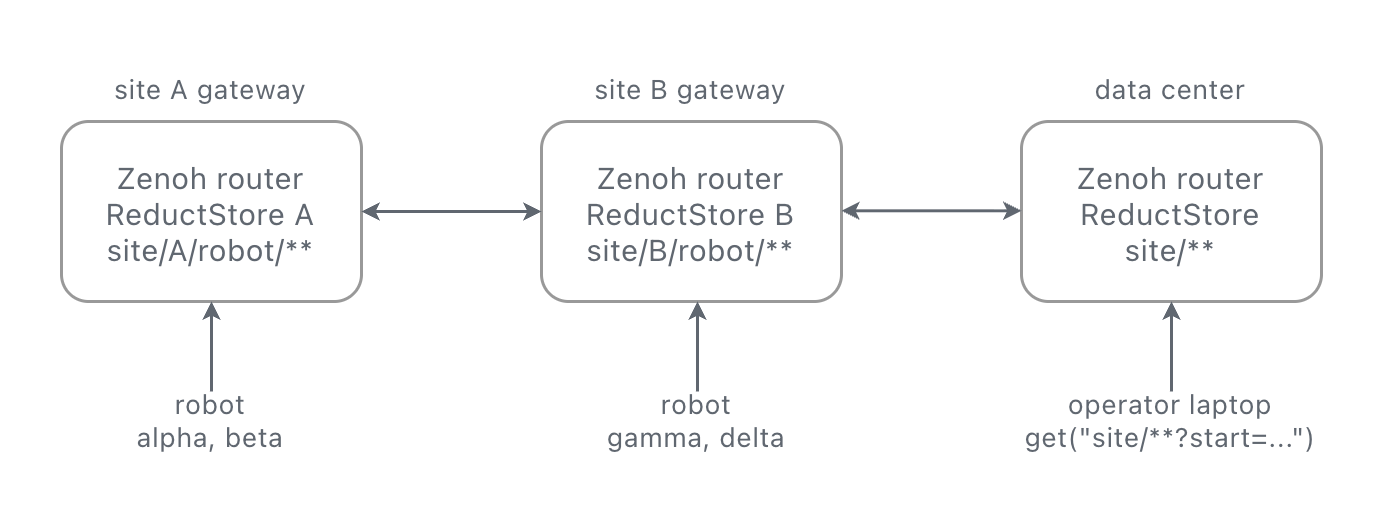

2. Queries work over the network

Zenoh routes queries. A get() from a remote laptop does not need to know where the storage lives; the router forwards it to whichever peer answers for the key.

Same client code whether it runs next to the gateway or across the WAN:

# on the gateway
python query_zenoh.py --robot alpha --last 60

# on a laptop somewhere else
python query_zenoh.py --robot alpha --last 60 \
    --endpoint tcp/gateway.example.com:7447

Storage can sit on the robot, on the gateway, or in the cloud. The caller’s code is the same in all three cases. Live data and historical queries flow through the same Zenoh session. RS_ZENOH_QUERY_LOCALITY lets you restrict whether the storage answers local queries, remote queries, or both.

3. FIFO quota policy based on storage volume

ReductStore buckets support a FIFO quota based on storage size: set a limit, and the oldest blocks are dropped to make room for new ones. This is more robust than a time-based retention policy for edge devices. If a robot goes offline for days, a “keep the last 24 hours” rule would silently discard everything when the robot comes back online. With a size-based policy, the bucket just fills up and keeps the most recent 50 GB, regardless of how long that takes.

# on the edge instance
environment:
  RS_BUCKET_1_NAME: "fleet"
  RS_BUCKET_1_QUOTA_TYPE: "FIFO"
  RS_BUCKET_1_QUOTA_SIZE: "50GB"

The bucket stays at 50 GB. HARD mode refuses new writes instead of dropping old ones, if that is what you need.

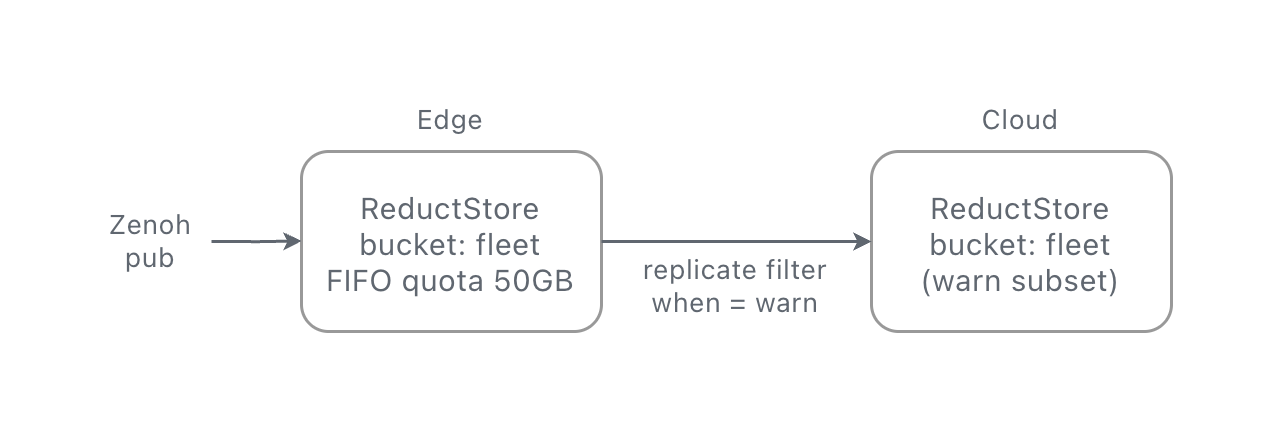

4. Label based replication to the cloud

When ReductStore subscribes to data from a Zenoh router on the edge, you may want to keep a long-term subset of that data in the cloud. ReductStore can replicate records from one instance to another, filtering by entry name and by label condition. The filter uses the same Conditional Query syntax as get(), so you can match on labels but also on context (e.g. keep the last 10 seconds of data before and after a “warn” event).

# on the edge instance: forward only warn events and their frames
environment:
  RS_REPLICATION_1_NAME: "warn_to_cloud"
  RS_REPLICATION_1_SRC_BUCKET: "fleet"
  RS_REPLICATION_1_DST_BUCKET: "fleet"
  RS_REPLICATION_1_DST_HOST: "https://reduct.example-cloud.com"
  RS_REPLICATION_1_DST_TOKEN: "${CLOUD_TOKEN}"
  RS_REPLICATION_1_ENTRIES: "robot/*/camera,robot/*/telemetry"
  RS_REPLICATION_1_WHEN: '{"&status": {"$eq": "warn"}}'

You label a record once, at ingest, and the same label drives the read query, the retention policy, and the replication rule.

Try it out

The full example is on GitHub. Clone, start the stack, and in a few seconds you have two simulated robots publishing telemetry and camera frames through a Zenoh router into ReductStore:

git clone https://github.com/reductstore/zenoh-example
cd zenoh-example
docker compose up --build

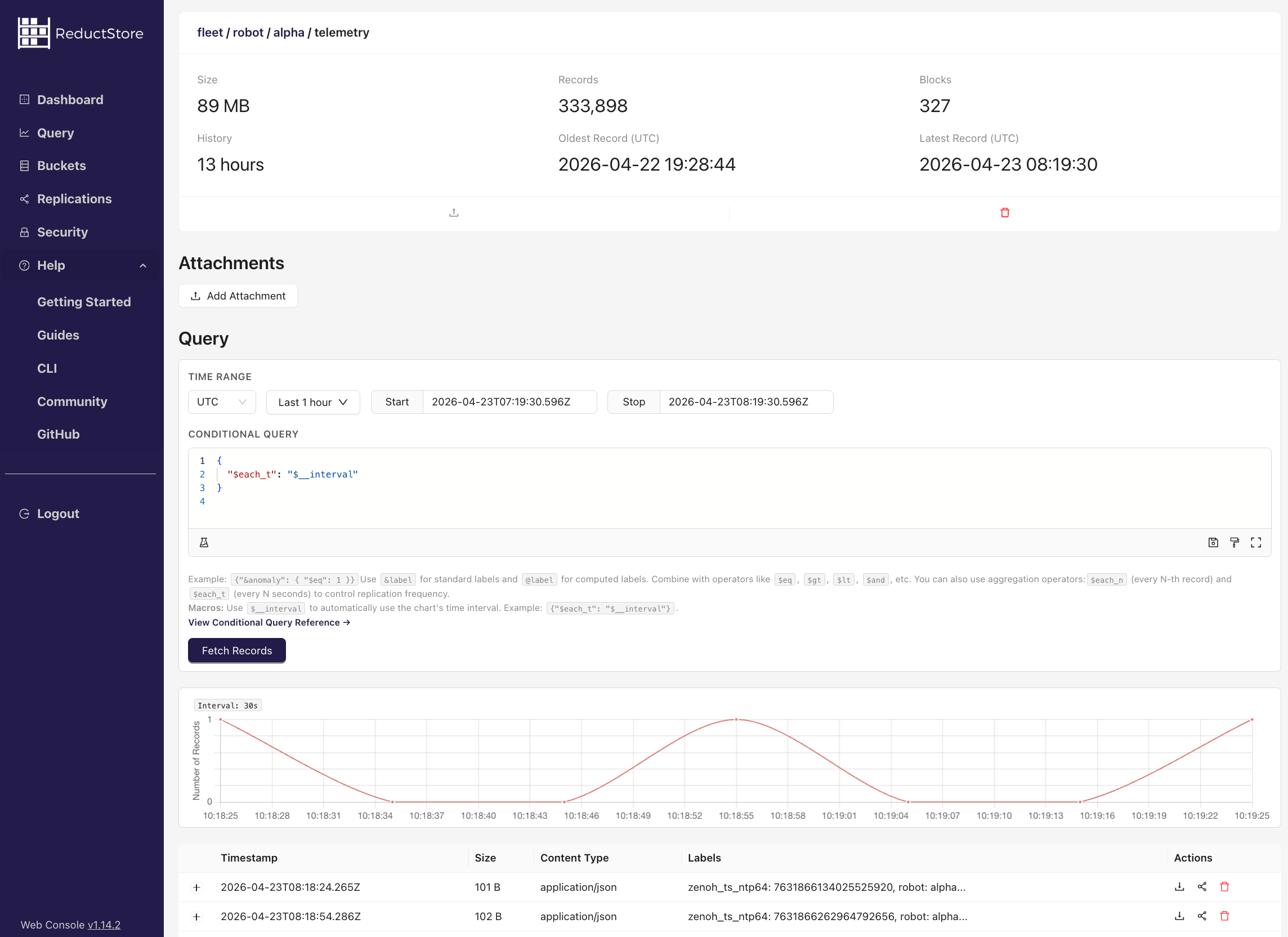

Once everything is up, open the ReductStore web console at http://localhost:8383 (API token: reductstore). You will see a fleet bucket with entries for each robot’s camera and telemetry streams. You can browse records by time range, inspect labels, and preview JPEG frames directly in the browser.

Now query the data over Zenoh from a separate terminal:

cd query && pip install -r requirements.txt

# latest 60 seconds of telemetry for robot alpha
python query_zenoh.py --robot alpha --last 60

# last 10 minutes, only records where status was "warn"
python query_zenoh.py --robot alpha --last 600 --only-warn

The query script connects to the Zenoh router, sends a get() with a time range selector, and receives the matching records.

If you want to dig deeper, the ReductStore + Zenoh integration docs cover every configuration option, and the replication guide explains label-based filtering in detail.

– The ReductStore Team
